QH_XXXX HEATERS

QH-6000

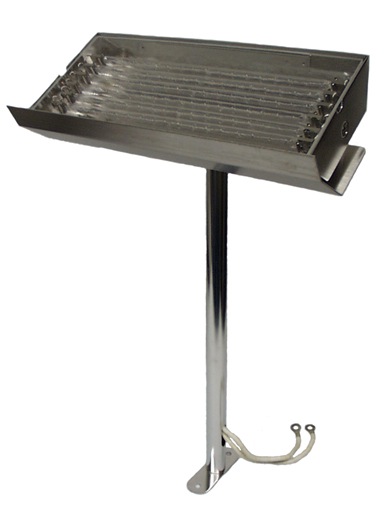

QH-6000 shown here with optional stand and shield

[QH-XXXX Technical Specifications] [E-Mail Eddy Co.] [Back To Eddy Home]

QH-4000 and QH-6000

Whether for substrate heating or degassing, these heaters perform beautifully. Each heater contains six 1000 watt quartz heat lamps, which are covered by a high temperature vicor shield. The heaters are also available with a stand and heat shield as an option. Reflector can be made from nickel or tantalum, depending on the applications.

The QH-4000 heater unit is nearly identical to the 6000 series, but slightly narrower and missing two lamps. It is perfect for applications requiring slightly less heat than the QH-6000 units, or in systems where space is at a premium.

QH-3000

This lamp uses six 500 watt lamps, which are shorter in length than the 1000 watt type. It is suitable for smaller systems requiring less power, or where the wider 4000 and 6000 series heaters will not fit.

Sizes:

QH-3000 - 1.8" x 10.5" x 5.4" (HxWxD)
QH-4000 - 1.8" x 12.5" x 4" (HxWxD)
QH-6000 - 1.8" x 12.5" x 5.4" (HxWxD)
Heater Stand - 16" x 8.5" x 3.6" (HxWxD) (Protective shield adds 1" to width of QH-XXXX)

QH-3000

QH-3000
