PL-36U - Planetary
item1
AboutButton
ProductsButton
ServiceButton
StaffButton
ContactButton
PL-36U3D

[PL-36U Technical Specifications] [Gallery]
[E-Mail Eddy Co.] [Back To Eddy Home]

Click to download the brochure.

pdficon
getacronew

The Adobe Acrobat Reader is used to read and print the on-line manuals and is available for both MacOS, Windows and UNIX.

To download a free copy of the Adobe Acrobat Reader, find more information about the product or acquire program updates, please visit Adobe's web site.

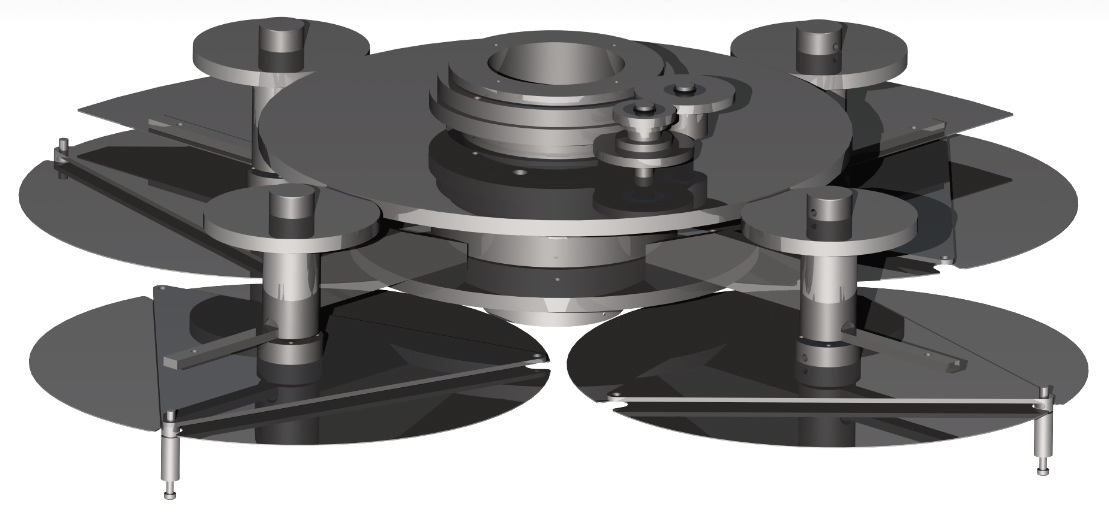

The PL-36U Planetary System is a well proven design having been in constant use for well over 16 years. Each of the 4 planets can hold a maximum of 13.5 inch diameter substrate holder. The gears are made from alternating materials of 304 SS and Vacuum heat-treated 17-4 for superior wear characteristics. Each planetary uses ceramic ball bearings with custom ball seperators and treated races. This gives the planetary superior life without the use of lubercants. The counter-rotating mask system works in conjuction with the ceramic bearings to give a 0.01 of 1% uniformity over the entire planet surface and from one planet to another. With the included heat shields the planetary will operate at up to 300˚ C. The planetary has a 3.75 inch hole through the center to provide for Chip Changer, Crystal Head & Temp Sensor to be centered in the system. Also included is a 1.0 inch ferrofluid feedthrough, drive gears, drive motor and motor controller.

DEMO
(mounted on a test rig)
